When solar project owners in Gujarat talk about system failures, they usually point to inverters, panels, or mounting structures. Rarely do solar cables come up in the conversation — and that is precisely the problem. Faulty or substandard solar cables are one of the leading causes of energy loss, unexpected downtime, and even fire hazards in Indian solar installations. Yet they remain one of the most overlooked components during procurement and installation planning.
Whether you own a rooftop solar system at home in Surat, operate a commercial facility in Ahmedabad, or manage an industrial solar plant anywhere in Gujarat, the quality and condition of your solar cables directly affect how much energy your system produces and how safely it operates. This guide examines the most common solar cable failures, the environmental factors that accelerate degradation in India’s climate, and the proven prevention strategies that experienced EPC teams use to protect their installations.
Why Solar Cables Are the Hidden Weak Link in Indian Solar Systems
Solar panels and inverters receive most of the attention during a solar project, but solar cables carry every watt of electricity your system generates. A single point of failure in the wiring can reduce your system’s output by 10–30%, trigger inverter shutdowns, or in the worst case, start an electrical fire. According to the Central Electricity Authority of India, electrical faults — many of them wiring-related, account for a significant share of solar system incidents reported each year.
In Gujarat, the challenge is even more acute. The state’s extreme summer temperatures, intense UV radiation, and heavy monsoon seasons create a uniquely harsh environment for solar wiring. Solar cables that perform adequately in milder climates can degrade rapidly when exposed to Gujarat’s conditions year after year. Add to this the widespread use of substandard cables by cost-cutting contractors, and you have a recipe for premature system failure.
The good news is that solar cable failures are almost entirely preventable. With the right specifications, proper installation practices, and a consistent maintenance schedule, your solar wiring can last the full 25-year lifespan of your solar panels. This article gives you the knowledge to make that happen.
Most Common Solar Cable Failures in Residential & Commercial Installations
Understanding how solar cables fail is the first step toward preventing those failures. Here are the most frequently seen solar cable problems in Indian residential and commercial solar systems.

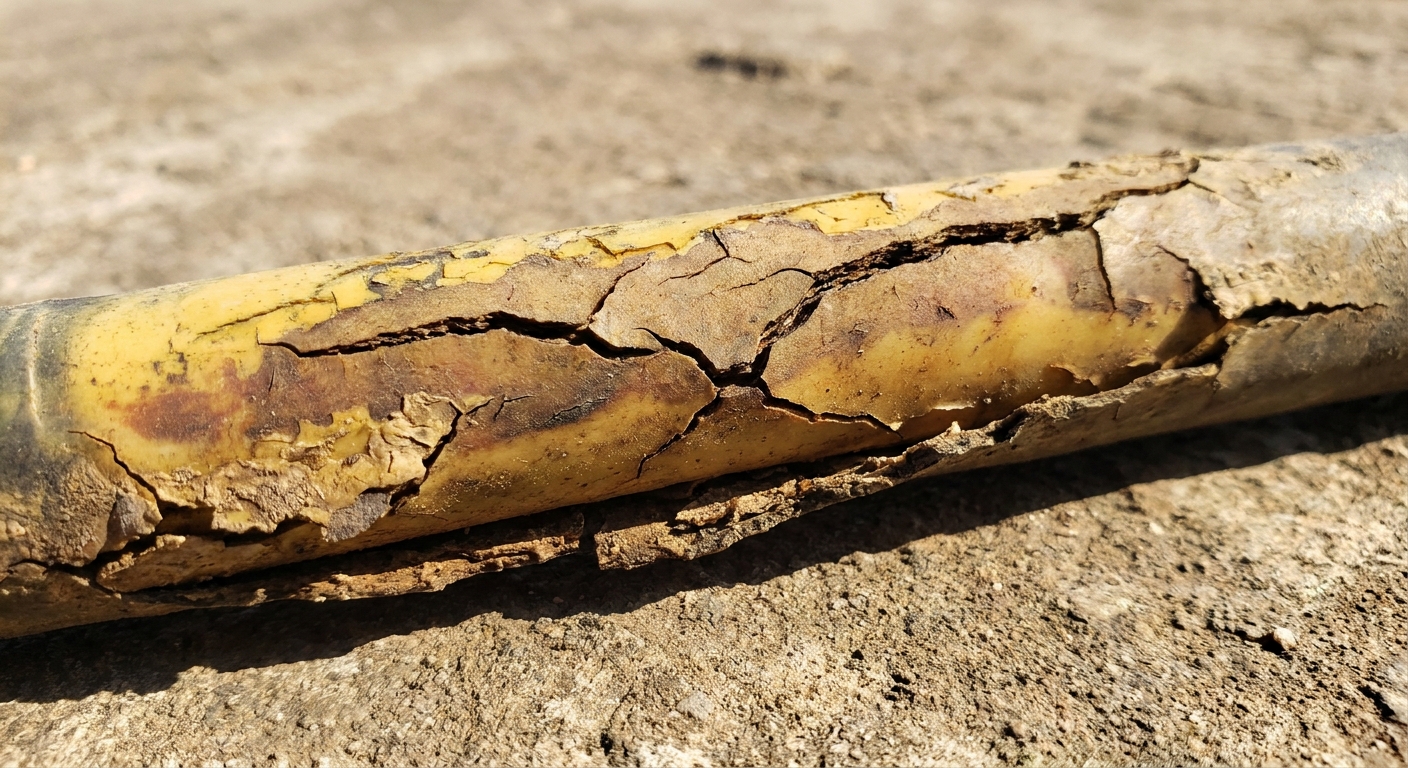

Insulation Breakdown from UV Exposure
Standard electrical cables are not designed for prolonged outdoor UV exposure. When non-solar-grade cables are used in rooftop installations, the polymer insulation begins to crack, harden, and eventually crumble within a few years. Once the insulation fails, bare conductors are exposed to moisture and metal surfaces, creating short-circuit and fire risks. Solar cables must use UV-stabilized, cross-linked polyethylene (XLPE) or similar materials rated for outdoor use.

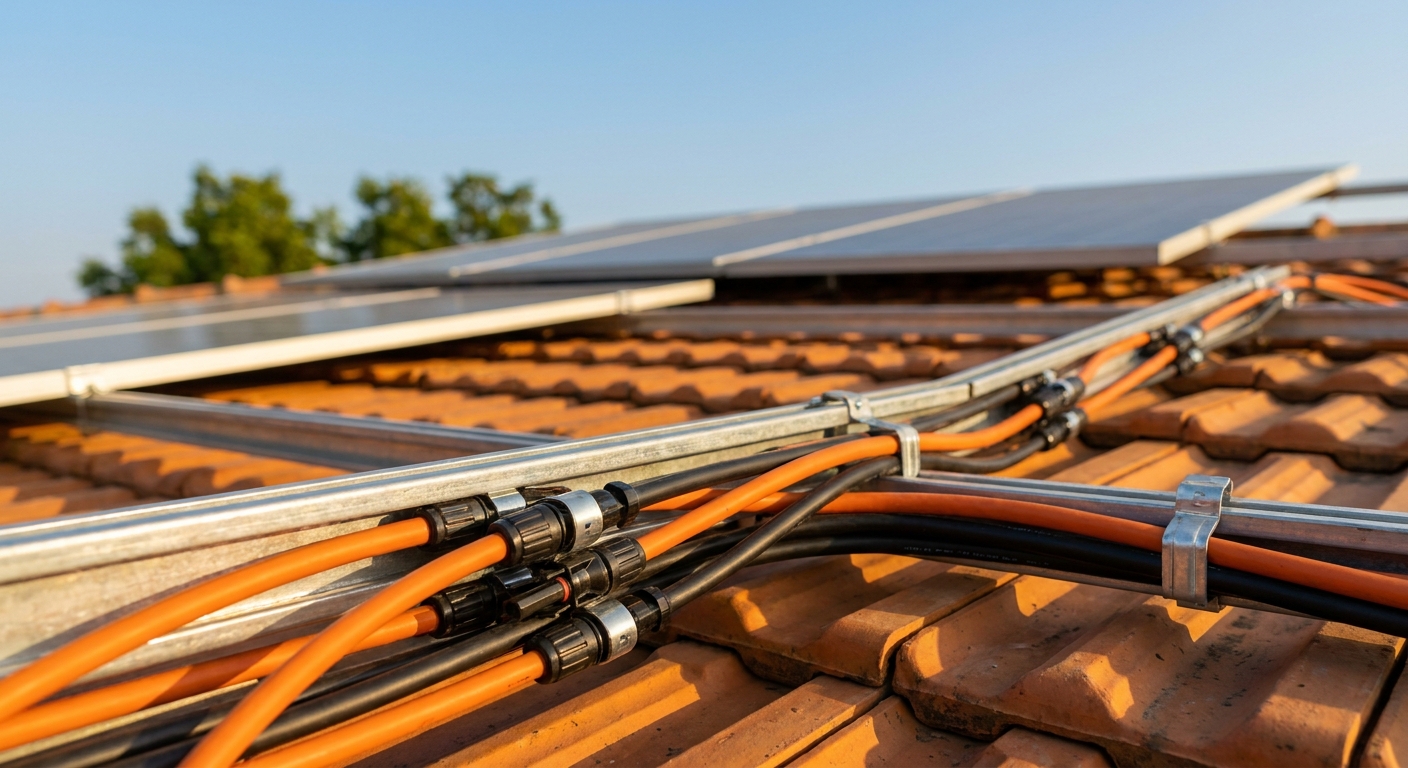

Loose or Corroded MC4 Connectors
MC4 connectors are the standard plug-and-play connectors used to join solar cable runs between panels and combiner boxes. When these connectors are not properly crimped, are mismatched between brands, or are exposed to moisture ingress, they develop high-resistance connections. High resistance generates heat, which accelerates corrosion and can eventually cause the connector to arc or melt. This is one of the most common causes of rooftop solar fires in India.
Undersized Cables Causing Resistive Losses
Choosing a cable with too small a cross-sectional area for the current it carries is a common cost-cutting mistake. Undersized solar cables have higher electrical resistance, which means more energy is lost as heat rather than delivered to your inverter. A 4mm² cable used where 6mm² is required can cause energy losses of 3, 5% or more, losses that compound over the 25-year life of your system and significantly affect your solar payback period.
Poor Crimping and Termination Failures
Even the best solar cables fail if they are poorly terminated. Incorrect crimping tools, wrong ferrule sizes, or untrained installation workers can create weak mechanical and electrical connections at every junction. These weak points heat up under load, oxidize over time, and eventually fail, often years after installation when the original contractor is long gone.
Ground Faults and Arc Faults
Ground faults occur when a live solar cable makes unintended contact with a grounded surface, such as a metal mounting frame. Arc faults happen when electricity jumps across a gap in damaged insulation. Both conditions are dangerous and can be difficult to detect without proper monitoring equipment. Modern solar inverters include ground fault detection, but older systems or systems with bypassed protection are particularly vulnerable.
Environmental & Installation Factors That Accelerate Solar Cable Degradation in India
India’s climate is demanding on all solar components, but solar cables are especially vulnerable because they are exposed to the full range of environmental stresses throughout the year. Gujarat’s specific conditions make this challenge even more pronounced.
Extreme Heat and UV Radiation in Gujarat Summers
Rooftop temperatures in Gujarat regularly exceed 60, 70°C during peak summer months. Solar cables lying on or near dark rooftop surfaces can experience even higher localized temperatures. Cables rated only to 70°C will begin to soften and degrade under these conditions. Only cables with a temperature rating of 90°C or higher, and ideally 120°C for cables near inverters or junction boxes, are appropriate for Gujarat installations.
UV radiation compounds the heat problem. Gujarat receives some of the highest solar irradiance levels in India, which is great for energy generation but brutal for cable insulation. Non-UV-stabilized cables can lose their mechanical integrity within 3, 5 years under direct Gujarat sunlight.
Monsoon Moisture Ingress and Humidity
The monsoon season brings a different set of challenges. Water ingress into cable conduits, junction boxes, and MC4 connectors causes corrosion of copper conductors and connector pins. Even small amounts of moisture inside a connector can dramatically increase contact resistance and accelerate failure. Proper IP-rated enclosures and correctly locked MC4 connectors are essential for surviving Gujarat’s monsoon season.
Dust and Particulate Accumulation
Gujarat’s industrial zones and semi-arid regions generate significant airborne dust. Dust accumulation on cable surfaces and inside junction boxes can trap moisture and create conductive pathways that lead to leakage currents. Regular cleaning and inspection of cable runs and junction boxes is an important part of solar EPC maintenance protocols.
Rodent Damage in Rural and Semi-Urban Installations
Rodent damage to solar cables is a surprisingly common problem in rural Gujarat, particularly in agricultural solar installations under the PM-KUSUM scheme. Rats and squirrels chew through cable insulation, sometimes causing complete circuit failures. Armored cables or cables routed through rigid conduits are strongly recommended for ground-mounted and agricultural solar systems.
Poor Cable Management and Mechanical Stress
Cables that are not properly secured can sag, rub against sharp metal edges, or be pulled taut by wind movement. Over time, this mechanical stress causes insulation abrasion and conductor fatigue. Cables must be routed with proper support spacing, protected at all points where they pass through or over metal edges, and secured with UV-resistant cable ties or clips rated for outdoor use.
Warning Signs Your Solar Cables May Be Failing
Catching solar cable problems early can prevent minor issues from becoming expensive failures. Here are the key warning signs that your solar cables need attention.
- Visible insulation damage: Cracking, yellowing, brittleness, or melted sections of cable insulation are clear signs of UV or heat degradation. Any visible damage requires immediate inspection and likely replacement.
- Unexplained energy output drops: If your solar system’s output has declined without a corresponding change in weather patterns or panel soiling, resistive losses in the cable runs could be the cause. Compare your current generation data against your system’s baseline performance.
- Inverter alarms and error codes: Modern solar inverters display error codes for ground faults, arc faults, and insulation resistance failures. If your inverter is showing these alerts, have a qualified technician inspect your solar cables immediately.
- Hot spots during thermal inspection: Thermal imaging cameras can detect abnormal heat at connectors, junction boxes, and cable runs, often before any visible damage appears. This is the most reliable early-warning tool for solar cable problems.
- Tripped breakers or RCCB trips: Repeated tripping of DC circuit breakers or residual current devices (RCCDs) without an obvious cause often indicates a ground fault or insulation failure in the solar cable system.
- Burning smell near the inverter or junction boxes: Any burning odor near electrical components is a serious warning sign that requires immediate shutdown and professional inspection.
How to Choose the Right Solar Cables for Gujarat Installations
Selecting the correct solar cables is not just about picking the cheapest option available. The right cable specification protects your investment, ensures safety, and maximizes energy yield over the system’s lifetime. Here is what to look for when specifying solar cables for Gujarat installations.
Key Certifications to Require
Always insist on solar cables that carry recognized international certifications. TUV Rheinland certification (to EN 50618 or IEC 62930 standards) is the most widely recognized mark of quality for solar DC cables. UL-listed cables are also acceptable for certain applications. These certifications confirm that the cable has been independently tested for UV resistance, temperature performance, flame retardancy, and electrical safety. Avoid any supplier who cannot provide certification documentation.
For a broader perspective on how certified components affect overall system quality, see our guide on top solar brands in Gujarat and what makes them reliable.
Temperature Rating Requirements
For Gujarat’s climate, specify solar cables with a minimum conductor temperature rating of 90°C. For cables routed near inverters, combiner boxes, or enclosed conduits where heat can accumulate, a 120°C rating provides an important safety margin. Never use standard 70°C-rated electrical cables in solar DC applications in India.
Correct Cable Cross-Section Sizing
Cable sizing must be calculated based on the maximum current the cable will carry, the cable length, and the acceptable voltage drop for your system. As a general reference:
- 4mm² cables are suitable for short string runs with currents up to approximately 30A
- 6mm² cables are recommended for longer string runs or higher-current applications
- 10mm² and above are used for main DC trunk cables and combiner box outputs
Always have your EPC contractor provide a cable sizing calculation as part of the system design documentation. Undersized cables are a false economy that costs more in energy losses than the savings on cable cost.
DC vs. AC Cable Differences
Solar systems use both DC cables (between panels, combiners, and the inverter’s DC input) and AC cables (from the inverter’s AC output to the distribution board). These are different products with different specifications. DC solar cables must be rated for the system’s open-circuit voltage, which can exceed 600V or even 1000V in larger systems. Never substitute AC-rated cables in DC solar applications.
Red Flags When Procuring Solar Cables
- Prices significantly below market rate, quality solar cables have a cost floor; anything dramatically cheaper is likely substandard
- No certification markings printed on the cable sheath
- Inability to provide test reports or certification documents
- Cables sold in non-standard spool lengths that suggest repackaging of off-cuts
- Insulation that feels soft, sticky, or has an unusual smell
Solar Cable Installation Best Practices to Prevent Failures
Even the highest-quality solar cables will fail prematurely if they are installed incorrectly. These best practices are standard procedure for professional solar EPC teams and should be non-negotiable on any installation.

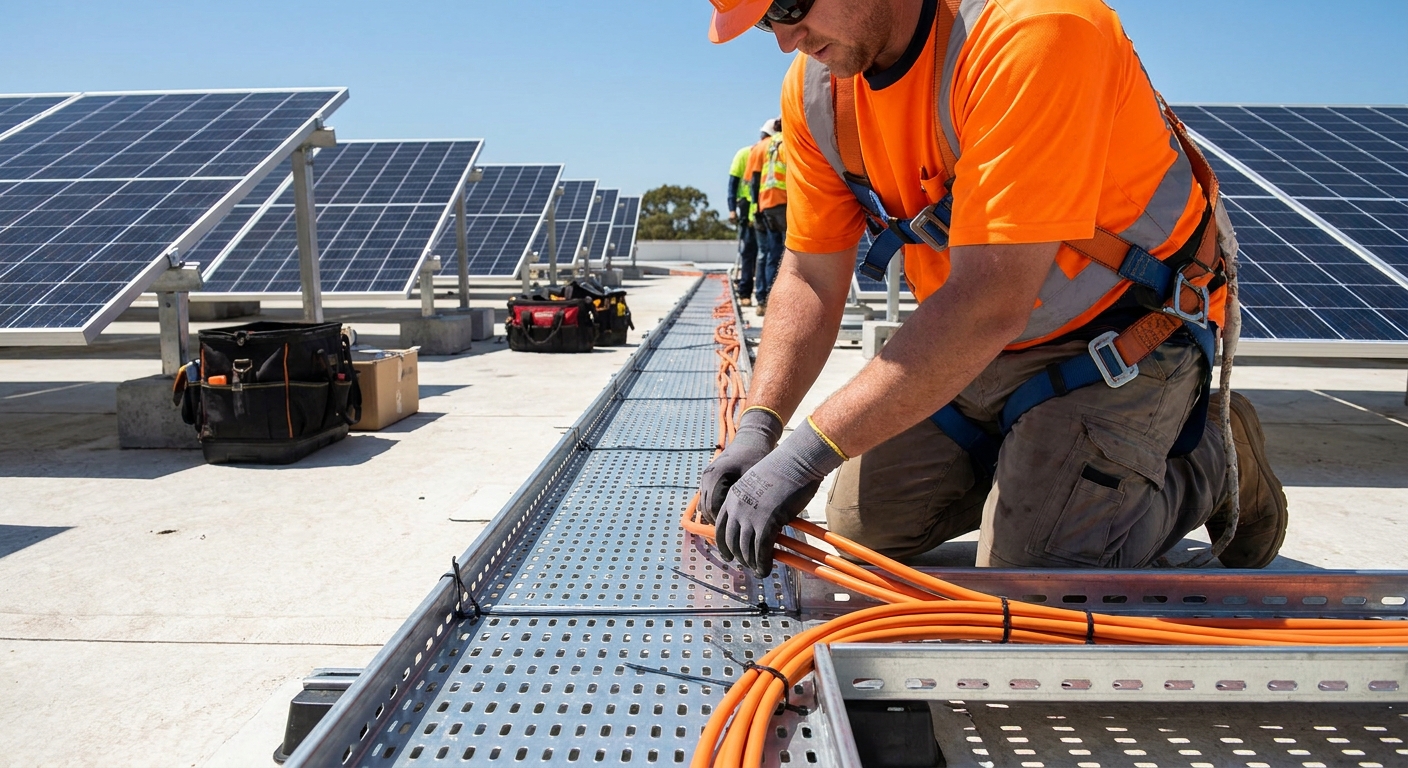

Proper Cable Routing and Conduit Use
All solar cables should be routed through UV-resistant conduits or cable trays wherever they are exposed to direct sunlight or mechanical risk. Conduits protect cables from UV radiation, physical damage, and rodent access. Use conduits rated for outdoor use (typically HDPE or UV-stabilized PVC) and ensure all conduit joints are properly sealed against moisture ingress.
Correct MC4 Connector Crimping and Locking
MC4 connectors must be crimped using the correct manufacturer-specified crimping tool, not generic pliers or improvised tools. After crimping, the connector must be fully locked by pressing the two halves together until an audible click is heard. Mixed-brand MC4 connectors (e.g., one brand’s male with another brand’s female) should never be used, as they may not seal correctly and can create dangerous arcing conditions.
Cable Support and UV-Resistant Ties
Support solar cables at intervals of no more than 300, 400mm on horizontal runs and 500mm on vertical runs. Use only UV-resistant cable ties rated for outdoor use, standard black nylon ties degrade and snap within 2, 3 years in Gujarat’s UV environment. Cable clips or saddles fixed to the mounting structure are preferable for long-term reliability.
Maintaining Minimum Bend Radius
Every solar cable has a minimum bend radius specified by the manufacturer, typically 4, 6 times the cable’s outer diameter. Bending cables tighter than this minimum damages the insulation and can cause conductor fatigue. Pay particular attention to cable routing at corners, through conduit bends, and at entry points to junction boxes and inverters.
Labeling and Documentation
Every cable run should be labeled at both ends with durable, UV-resistant labels identifying the string number, polarity, and circuit. Comprehensive as-built documentation, including cable routing diagrams, connector locations, and cable specifications, is essential for future maintenance and troubleshooting. This documentation is a standard deliverable from any professional solar EPC contractor.
Solar Cable Inspection & Maintenance Schedule for Indian Systems
Preventive maintenance is far less expensive than emergency repairs. A structured inspection schedule for your solar cables will catch problems early and keep your system performing at its best throughout its operational life.
Recommended Inspection Frequency
For solar installations in Gujarat, we recommend the following inspection schedule:
- Post-monsoon inspection (October/November): Check all MC4 connectors and junction boxes for moisture ingress, corrosion, and seal integrity. Inspect cable conduits for water accumulation. This is the most critical annual inspection for Indian systems.
- Pre-summer inspection (February/March): Check cable insulation condition before peak heat season. Look for any cracking or brittleness that developed over the previous year. Verify all cable supports and ties are intact.
- Annual comprehensive inspection: Full visual inspection of all accessible cable runs, thermal imaging of all connectors and junction boxes, insulation resistance (IR) testing of all string cables, and review of inverter fault logs for any wiring-related alerts.
What to Check During Each Inspection
During each inspection, a qualified technician should check for:
- Visible insulation damage: cracking, discoloration, melting, or abrasion
- Connector condition: corrosion, moisture, improper locking, or physical damage
- Cable support integrity: missing or broken ties, sagging cable runs
- Conduit condition: cracks, open joints, or water accumulation
- Junction box seals: gasket condition and IP rating integrity
- Rodent damage: bite marks on cables or conduits

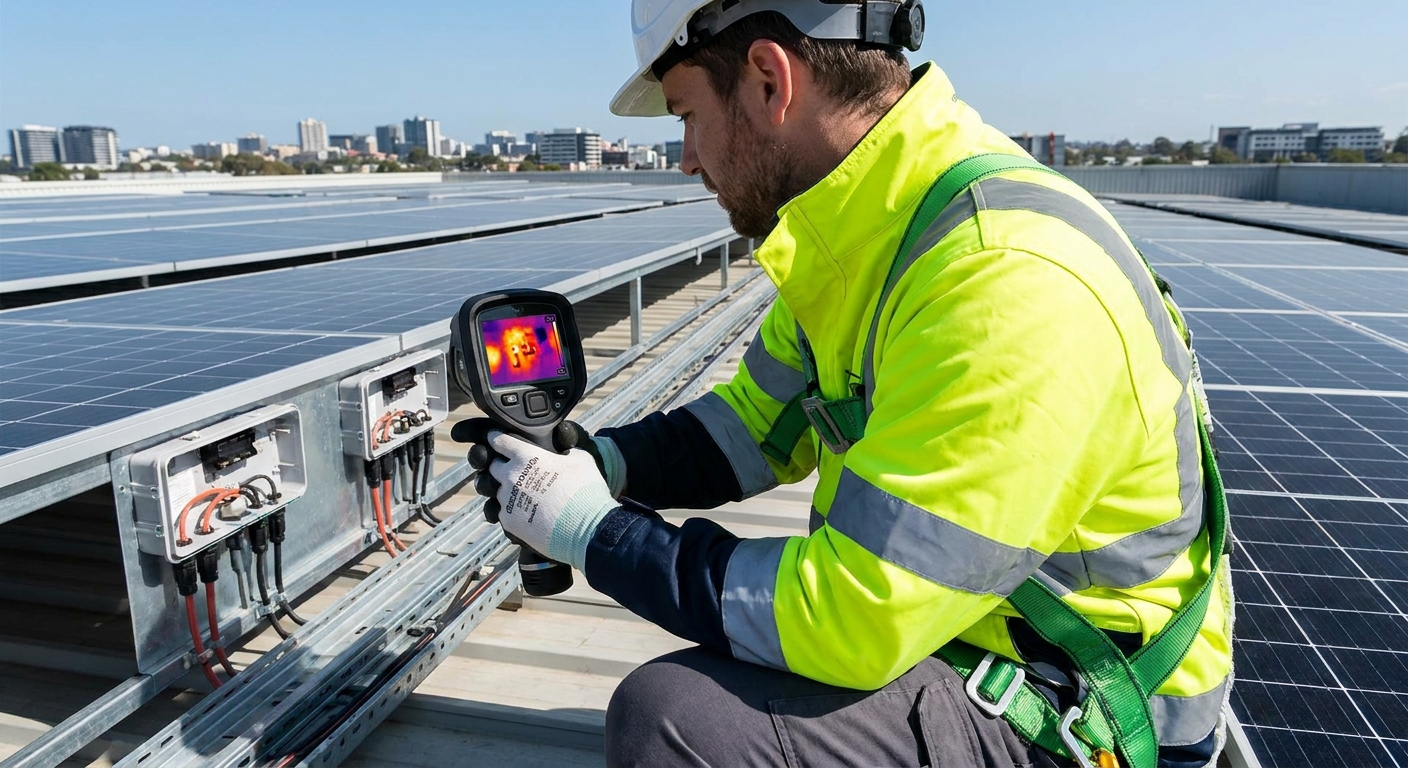

Thermal Imaging as a Diagnostic Tool
Thermal imaging (infrared inspection) is the most effective tool for detecting high-resistance connections in solar cable systems before they cause visible damage or system failure. A thermal camera can identify hot spots at MC4 connectors, junction box terminals, and cable terminations that are invisible to the naked eye. Professional solar maintenance teams use thermal imaging as a standard part of annual inspections. The International Renewable Energy Agency (IRENA) recommends thermal inspection as a best practice for solar O&M globally.
When to Replace vs. Repair Solar Cables
Minor issues like a single damaged MC4 connector can often be repaired by a qualified technician using proper tools and replacement connectors. However, cables with widespread insulation degradation, significant conductor corrosion, or multiple failure points should be replaced entirely. Attempting to repair extensively degraded solar cables with tape or makeshift solutions is dangerous and will not provide a lasting fix. When in doubt, replacement is the safer and more cost-effective long-term choice.
Frequently Asked Questions About Solar Cables
What cable size is needed for a 5kW rooftop solar system?
For a typical 5kW rooftop solar system in Gujarat, 4mm² DC solar cables are commonly used for string runs up to 10, 15 meters. For longer runs or systems with higher string currents, 6mm² cables are recommended to keep voltage drop within acceptable limits. Your EPC contractor should provide a cable sizing calculation specific to your system layout.
Can I use regular electrical wire instead of solar cables?
No. Regular electrical wires (such as standard PVC-insulated house wiring) are not suitable for solar DC applications. They are not rated for the DC voltages used in solar systems, lack UV resistance for outdoor exposure, and are not designed for the temperature extremes of rooftop environments. Using standard electrical wire in solar applications is a safety hazard and will void equipment warranties. Always use cables specifically designed and certified for solar photovoltaic use.
How long do solar cables last in Indian conditions?
High-quality, TUV-certified solar cables from reputable manufacturers are designed to last 25 years or more, matching the expected lifespan of solar panels. However, substandard cables or cables that are improperly installed can fail within 3, 7 years in India’s harsh climate. Proper installation, UV protection through conduits, and regular maintenance are the key factors that determine actual cable lifespan.
What certifications should solar cables have?
For solar installations in India, look for cables certified to TUV Rheinland standards (EN 50618 or IEC 62930). These certifications confirm the cable has been tested for UV resistance, temperature performance, flame retardancy, and electrical safety. BIS (Bureau of Indian Standards) certification is also increasingly required for solar components under Indian government procurement schemes.
How do I know if my solar cables are causing energy loss?
The most reliable way to detect cable-related energy losses is to compare your system’s actual generation against its expected output using your inverter’s monitoring data. A consistent shortfall that cannot be explained by shading, soiling, or panel degradation may indicate resistive losses in the cable system. A professional solar maintenance team can perform insulation resistance testing and thermal imaging to pinpoint the source of losses.
Protect Your Solar Investment with the Right Solar Cables and Expert Installation
Solar cables may be the least glamorous component of your solar system, but they are among the most critical. Substandard or improperly installed solar cables silently drain your energy yield, shorten your system’s life, and create real safety risks, all while your panels and inverter appear to be working normally. For Gujarat homeowners, businesses, and industrial operators who have invested in solar energy, protecting that investment starts with getting the wiring right from day one.
At Heaven Green Energy, our solar EPC teams in Surat, Ahmedabad, and Junagadh specify only TUV-certified solar cables, follow strict installation protocols, and provide comprehensive as-built documentation with every project. Whether you are planning a new rooftop solar installation, upgrading an existing system, or concerned about the condition of your current solar cables, our experienced team is ready to help.
If you have questions about solar cable specifications, want a professional inspection of your existing solar wiring, or are planning a new solar installation in Gujarat, call our team directly at +91 63904 05060, we will help you choose the right solar cables and installation approach for your specific needs and location.
